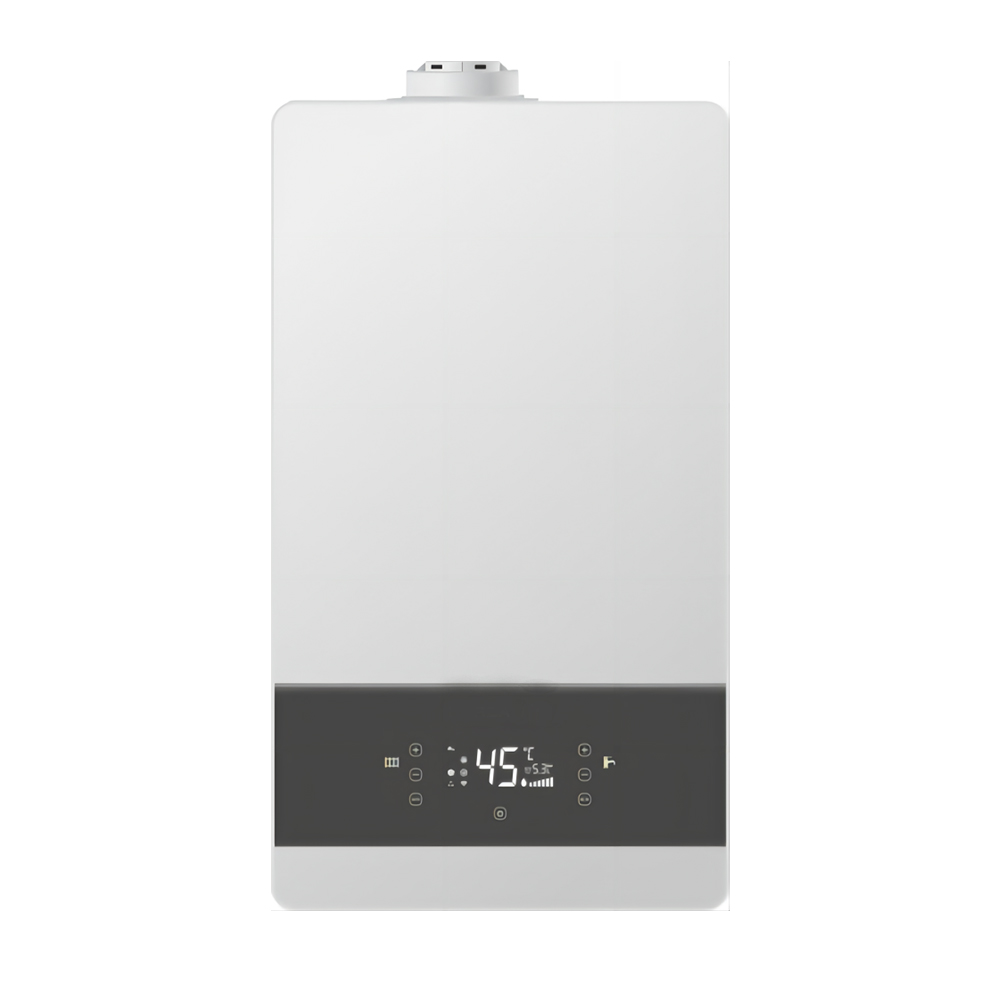

BOSS Smart Wall Hung Combi Condensing Gas Boiler with WIFI & 4G
Condensing Type
Power Options: 24/30/36 kW
Technological Advantage
(1) Gas adaptive
300-3000pa gas pressure adaptive start
(2) Voltage adaptive
160v-280v voltage low or high fluctuation adaptive
(3) Water pressure adaptive
Automatically adjust the stable water outlet temperature according to the water flow
(4) Intelligent Constant Temperature Technology
Gasproportionalvalve,fan,venturiandothercomponents are perfectly regulated toproduce hot water quickly and experience a comfortableshower.
(5) Energy saving and gas saving
A-level energy efficiency
(6) Low noise design
Built-in fluid mechanics silencer, silent operation, no sleep disturbance
(7) 24 Safety Testing Process
high temperature protection, low pressureprotection, anti-dry burning protection, automaticpressurereliefprotection, accidentalflameoutandother24safetyprotection.
(8) Rainwater collector
Prevent rainwater backflow, burn core components, better protect the machine
(9) Smart Internet of Things
Mobile phone WIFI remote control, one-click view of gas consumption
Technical Data
Model | 24kw | 30kw | 36kw | |
Rated heat load of heating | kw | 24.4 | 30.4 | 36.4 |
Rated output power | kw | 24.0 | 30.0 | 36.0 |
Min. heating output power | kw | 3.5 | 4.3 | 5.2 |
Min. sanitary water output | kw | 3.5 | 4.3 | 5.2 |
Max. Rated Condensing Thermal Efficiency(50℃/30℃) | % | 107 | 107 | 107 |
Heating Area | ㎡ | 90-150 | 150-240 | 180-280 |
Max. heating temperature | ℃ | 80 | 80 | 80 |
Rated electrical power | W | 125 | 140 | 140 |
Voltage/Frequency | V/Hz | 220/50 | 220/50 | 220/50 |
NOx Level | Mg/kw·h | 7 | 7 | 7 |
Product Dimension (LxWxH) | mm | 710x400x346 | 710x400x346 | 710x400x346 |
