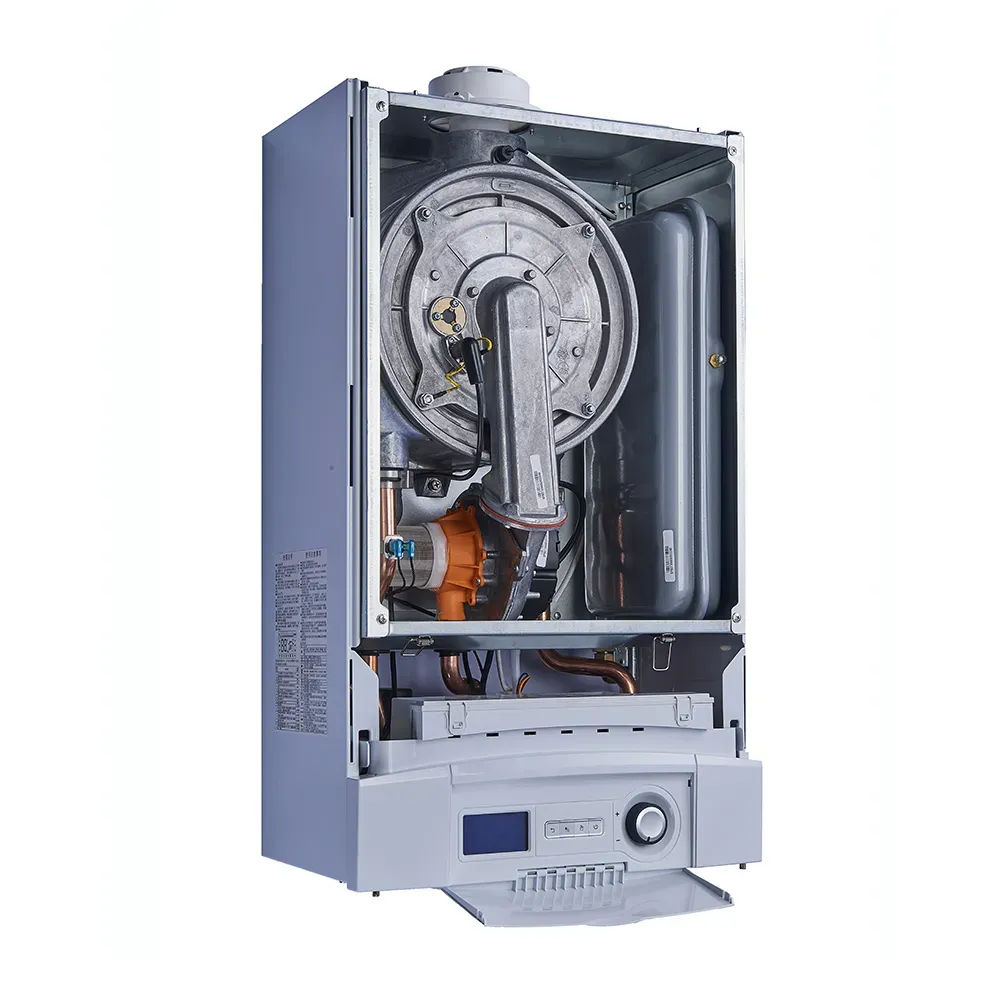

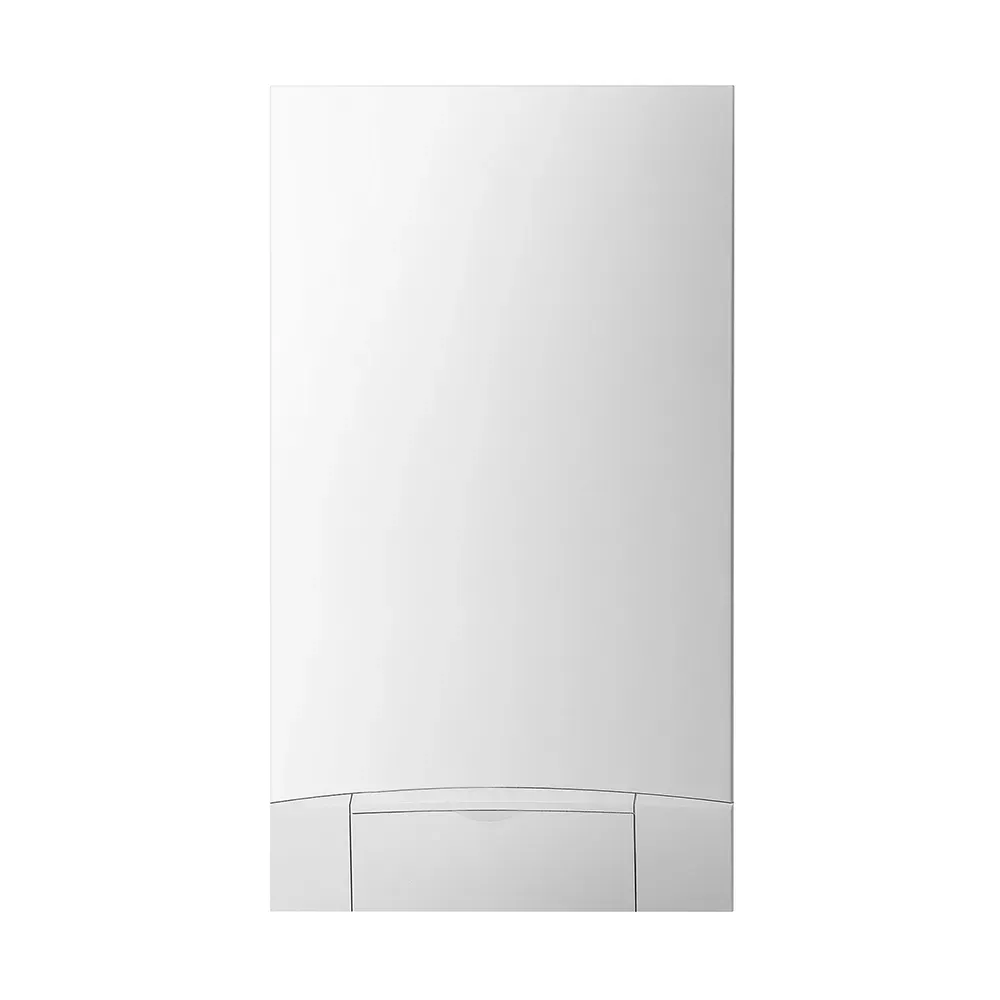

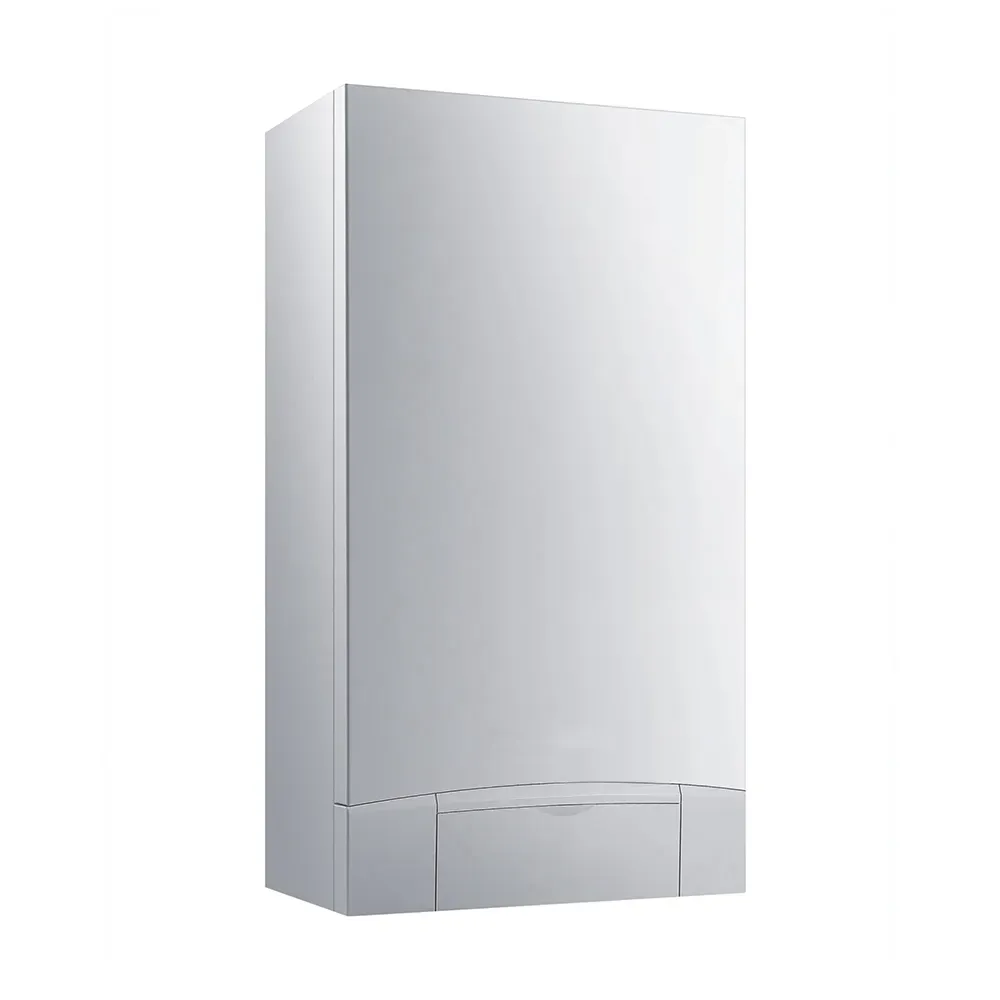

S Series Villa Full Premix System Condensing Gas Boiler

  • 316T Stainless Steel Titanium Alloy Heat Exchanger
  • Large Flow Coil
  • Gas,Voltage and Water Pressure Adaptive
  • Hot Water Comfort
  • Energy Saving and Gas Saving
  • Low Noise Design
  • Drawer-type Air Filter
  • Rainwater Collector
  • Smart Internet of Things

SUPER PLUS Villa Full Premix System Condensing Gas Boiler

Condensing Type/Coil Water Tank

Power Options: 55/60/65/75 kW



Technological Advantage

(1) Gas adaptive

300-3000pa gas pressure adaptive start

(2) Voltage adaptive

160v-280v voltage low or high fluctuation adaptive

(3) Water pressure adaptive

Automatically adjust the stable water outlet temperature according to the water flow

(4) Hot water comfort

The self-adjustment function of adaptive technology better solves the stability of shower hot water

(5) Energy saving and gas saving

A-level energy efficiency

(6) Low noise design

Built-in fluid mechanics silencer, silent operation, no sleep disturbance

(7) Drawer-type air filter

Extend the boiler maintenance time and reduce maintenance costs

(8) Rainwater collector

Prevent rainwater backflow, burn core components, better protect the boiler

(9) Smart Internet of Things

Mobile phone WIFI remote control, one-click view of gas consumption



Technical Data

Model

55kw

60kw

65kw

75kw

Rated heat load of heating

kw

55.0

60.0

65.0

75.0

Rated output power

kw

54.0

57.0

64.0

67.0

Min. heating output power

kw

13.8

13.8

16.0

17.5

Max. heating temperature

80

80

80

80

Max. Rated Condensing Thermal Efficiency(50℃/30℃)

%

107

107

107

107

Heating Area

300-460

200-443

350-550

233-517

Hot water production rate (∆t=30K)

kg/min

1.57

28.7

1.86

35.8

Rated electrical power

W

150

375

150

375

Voltage/Frequency

V/Hz

220/50

220/50

220/50

220/50

NOx Level

Mg/kw·h

7

7

7

7

Product Dimension (LxWxH)

mm

760x420x400

760x416x433

760x420x400

760x416x433
