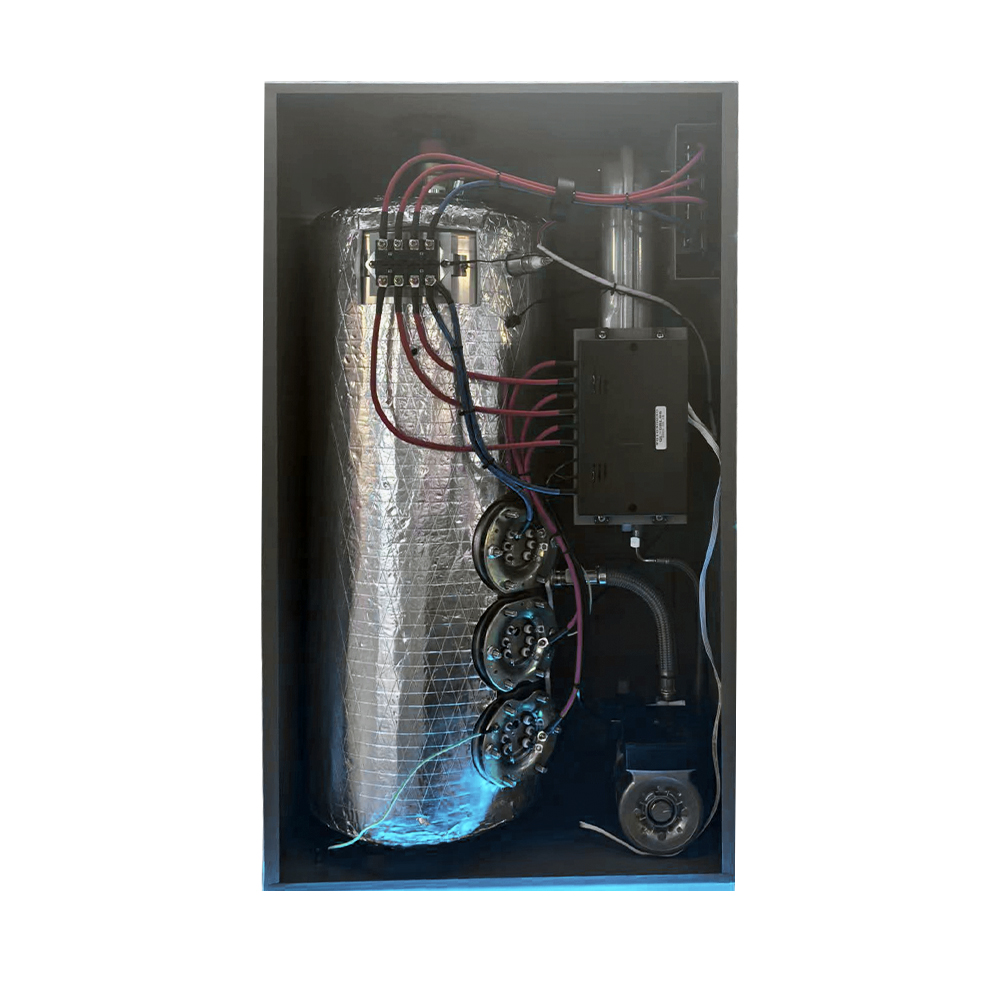

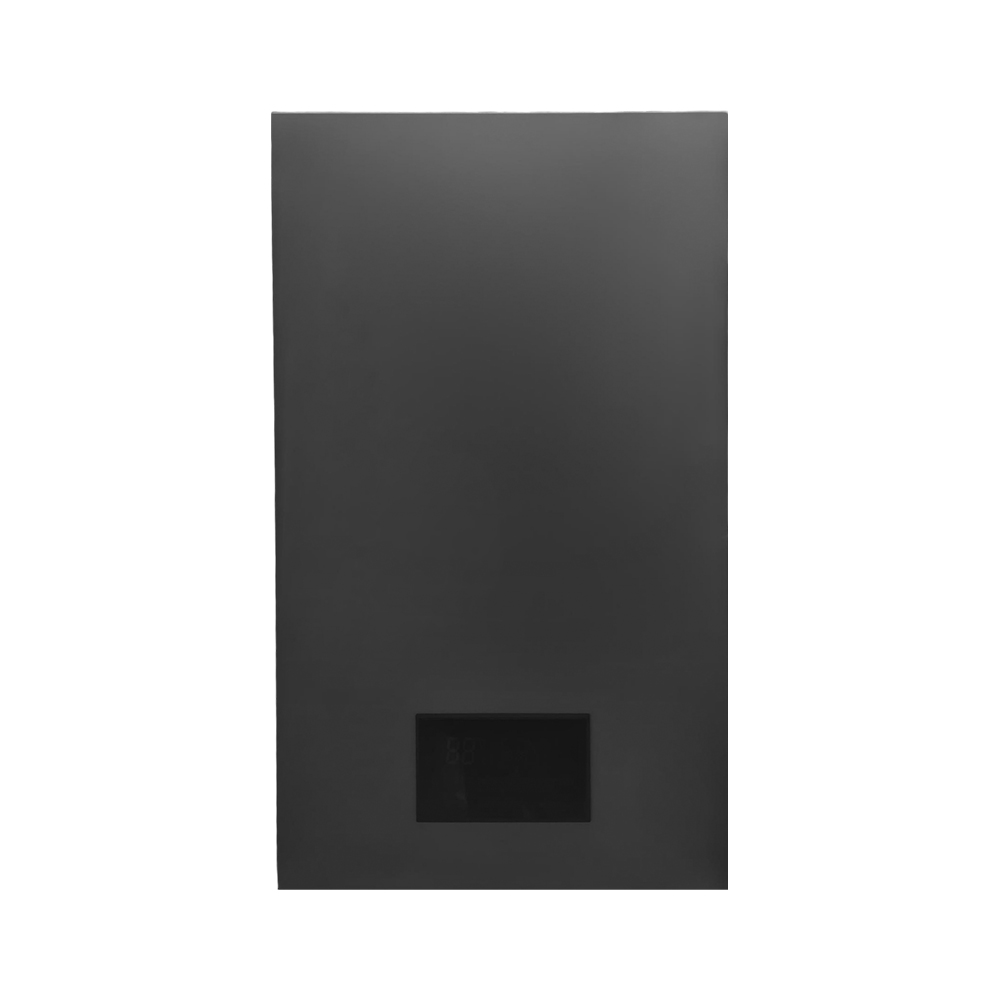

High-Efficiency Volumetric Wall Hung Combi Electric Boiler with Tank
- Instant Heating
- Energy-Saving
- Ultra-Quiet Operation
- Smart Control
- Environmental Friendly
High-Efficiency Volumetric Wall Hung Combi Electric Boiler with Tank
Power Option:8/10/12kw
Technical Specifications
Model | DSF8-Super | DSF10-Super | DSF12-Super | |
Maximum power | kW | 8 | 10 | 12 |
Three power ranges | kW | 2.7-5.4-8 | 3.4-6.8-10 | 4-8-12 |
Power supply | V/Hz | 380/50 | 380/50 | 380/50 |
Reference power consumption | kW/h | 2.7-8 | 3.4-10 | 4-12 |
Protection level | IP | X4 | X4 | X4 |
Expansion tank capacity | L | 5 | 5 | 5 |
Expansion tank initial pressure | MPa | 0.1 | 0.1 | 0.1 |
Storage tank capacity | L | 40 | 40 | 40 |
Recommended heating operating pressure | Mpa | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 |
Single-unit current | A | 12 | 15 | 18 |
Maximum current | A | 36 | 45 | 54 |
Maximum pump head | m | 7 | 7 | 7 |
Maximum heating temperature | ℃ | 80 | 80 | 80 |
Net weight/gross weight | kg | 28.2/31.2 | 28.2/31.2 | 28.7/31.8 |
Reference heating area | m² | 100-120 | 120-140 | 140-160 |
Heating outlet dimensions | inch | G3/4 | G3/4 | G3/4 |
Heating return inlet dimensions | inch | G3/4 | G3/4 | G3/4 |
Water supply inlet | inch | G1/2 | G1/2 | G1/2 |
Pressure relief port | mm | 15 | 15 | 15 |
Product dimensions (L x W x H) | mm | 740×430×300 | 740×430×300 | 740×430×300 |
Packaging dimensions (L x W x H) | mm | 830×495×390 | 830×495×390 | 830×495×390 |
