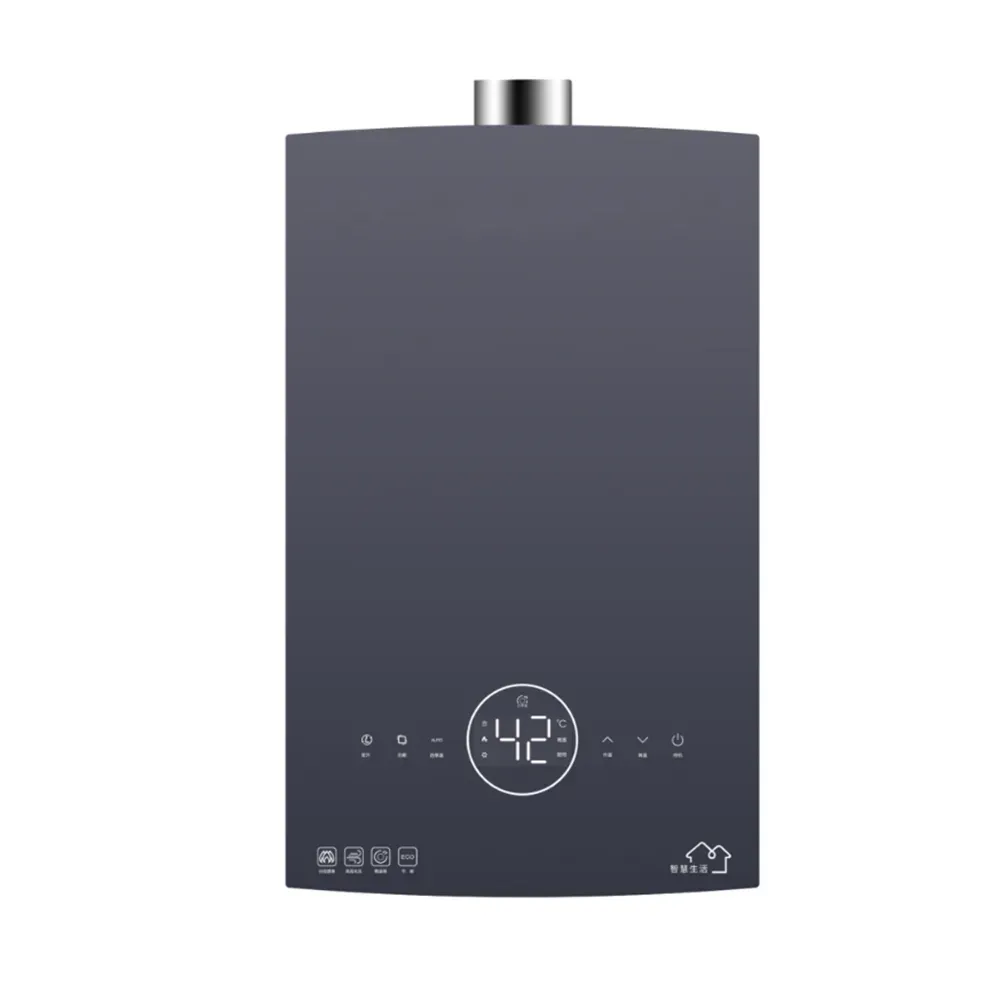

Smart Gas Water Heater with Wi-Fi Control
- Low water pressure start
- Oxygen-free copper water tank
- DC frequency conversion fan
- DC circulating water pump
- Real-time fault self-test, multiple protection
- Precision proportional valve
- plastic water flow sensor
Technical Advantage
1. Low Water Pressure Start – Instantly delivers strong hot water flow even in high-rise apartments
2.Oxygen-Free Copper Tank – 99.9% antibacterial, corrosion-resistant for cleaner water & longer lifespan
3. DC Inverter Fan & Water Pump – Energy Saving
4.Precision Proportional Valve – Maintains perfect water temperature (±0.5℃ accuracy)
5.Smart Safety Features –Automatic Fault Detection System
Technical Data
Model | JSQ25-13MD2 | JSQ30-16MZ1 |
Suitable gas source | Liquefied petroleum gas 20Y/2800Pa | |
Natural gas 12T/2000Pa | ||
Rated heat load | 25kw | 30kw |
Water pressure | 0.025-0.8MPa | |
Energy efficiency class | ClassⅡ | |
Rated hot water production capacity | 13kg/min | 16kg/min |
Rated min. heat load | ≤8.75kW | ≤10.5kW |
Rated voltage | ~220V | |
Frequency | 50Hz | |
Rated power | AC 40W/ DC 28 or 40W | |
Control mode | Post system | |
Smoke exhaust mode | Forced exhaust type | |
Ignition mode | Fully automatic pulse continuous ignition | |
Exhaust pipe diameter | 60mm | |
Product dimension | 550x350x150mm | 570x360x135mm |
