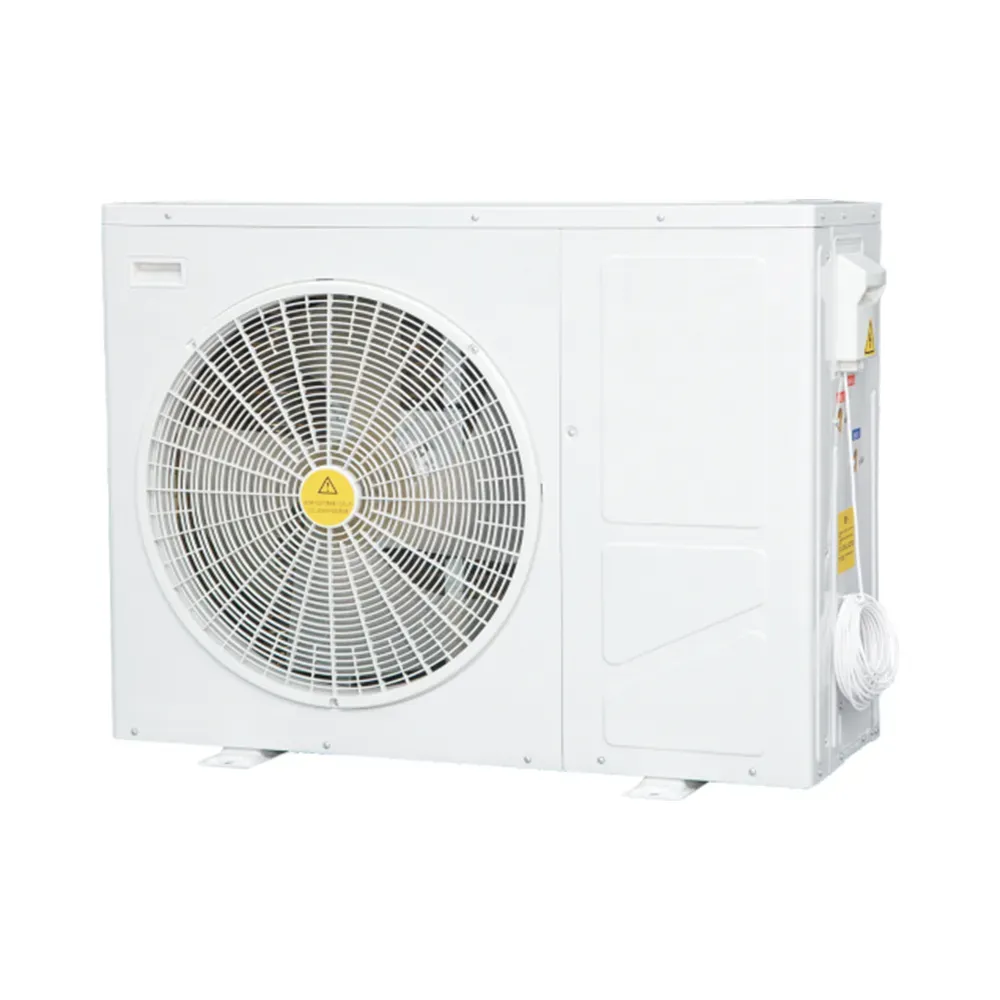

Ultra-Efficient Air Source Heat Pump with Single Fan
- Environmental protection
- Low carbon
- Smart
Advantage：
1.The refrigerant and water heat exchanger are integrated in the main unit, which is easy to install and takes up little space;
2.Heating in winter and cooling in summer, one machine for multiple uses;
3.The DC variable frequency enthalpy heat pump dedicated compressor is stable and efficient;
4.Intelligent control, constant temperature and comfortable.
Parameters：
Model | RB-6/DBPA (Single Fan) | RB-9/DBPA (Single Fan) | RB-9.5/DBPA (Dual Fan) | RB-11/DBPA (Single Fan) | |
Power Supply | 220V/50Hz 1-phase | 220V/50Hz 1-phase | 220V/50Hz 1-phase | 220V/50Hz 1-phase | |
Rated Heating | Heating Capacity (kW) | 5.80 | 9.50 | 9.50 | 11.50 |
COP(W/W) | 2.30 | 2.40 | 2.40 | 2.30 | |
Input Power (kW) | 2.52 | 3.96 | 3.96 | 5.00 | |
Current (A) | 11.46 | 17.99 | 17.99 | 22.73 | |
Nominal Heating | Capacity (kW) | 8.00 | 13.50 | 13.50 | 15.00 |
COP (W/W) | 3.10 | 3.24 | 3.24 | 3.20 | |
Input Power (kW) | 2.58 | 4.17 | 4.17 | 4.69 | |
Current (A) | 11.73 | 18.94 | 18.94 | 21.31 | |
Low-Temp Heating | Capacity (kW) | 4.00 | 7.50 | 7.50 | 9.00 |
COP (W/W) | 2.00 | 1.90 | 1.90 | 2.00 | |
Input Power (kW) | 2.00 | 3.95 | 3.95 | 4.50 | |
Current (A) | 9.09 | 17.94 | 17.94 | 20.45 | |
Heating | Rated Water Temp (°C) | 41 | 41 | 41 | 41 |
Max Outlet Temp (°C) | 55 | 55 | 55 | 55 | |
Cooling | Rated Water Temp (°C) | 12 | 12 | 12 | 12 |
Min Water Temp (°C) | 7 | 7 | 7 | 7 | |
Max Input Power (kW) | 3.50 | 5.50 | 5.50 | 7.00 | |
Max Current (A) | 15.91 | 25.00 | 25.00 | 31.82 | |
Shock Protection | Class I | Class I | Class I | Class I | |
IP Rating | IPX4 | IPX4 | IPX4 | IPX4 | |
Max Working Pressure (MPa) | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | |
Compressor | Type | Rotary | Rotary | Rotary | Rotary |
Quantity | 1 | 1 | 1 | 1 | |
Refrigerant | Model | R410A | R410A | R410A | R410A |
Fan | Type | Low-noise axial | Low-noise axial | Low-noise axial | Low-noise axial |
Airflow Direction | Side discharge | Side discharge | Side discharge | Side discharge | |
Air side heat exchanger | Evaporator | L-shaped hydrophilic fin | L-shaped hydrophilic fin | L-shaped hydrophilic fin | L-shaped hydrophilic fin |
Waterway side | Water side heat exchanger | High-efficiency tank | High-efficiency tank | High-efficiency tank | High-efficiency tank |
Connection Size | G1" | G1" | G1" | G1" | |
Water Flow (m³/h) | 1.8 | 3 | 3 | 3.6 | |
Pressure Drop (kPa) | 40 | 40 | 40 | 40 | |
Dimensions(mm) | 1030×480×800 | 1030×480×800 | 1030×480×800 | 1030×480×800 | |
Net Weight (kg) | 80 | 120 | 120 | 120 | |
Noise Level (dB(A)) | 50 | 52 | 52 | 52 | |
Operating Temp Range (°C) | -30~43 | -30~43 | -30~43 | -30~43 | |
Climate Type | Ultra-low temperature | Ultra-low temperature | Ultra-low temperature | Ultra-low temperature | |
Recommended Area (m²) | 60 | 90 | 90 | 110 | |
