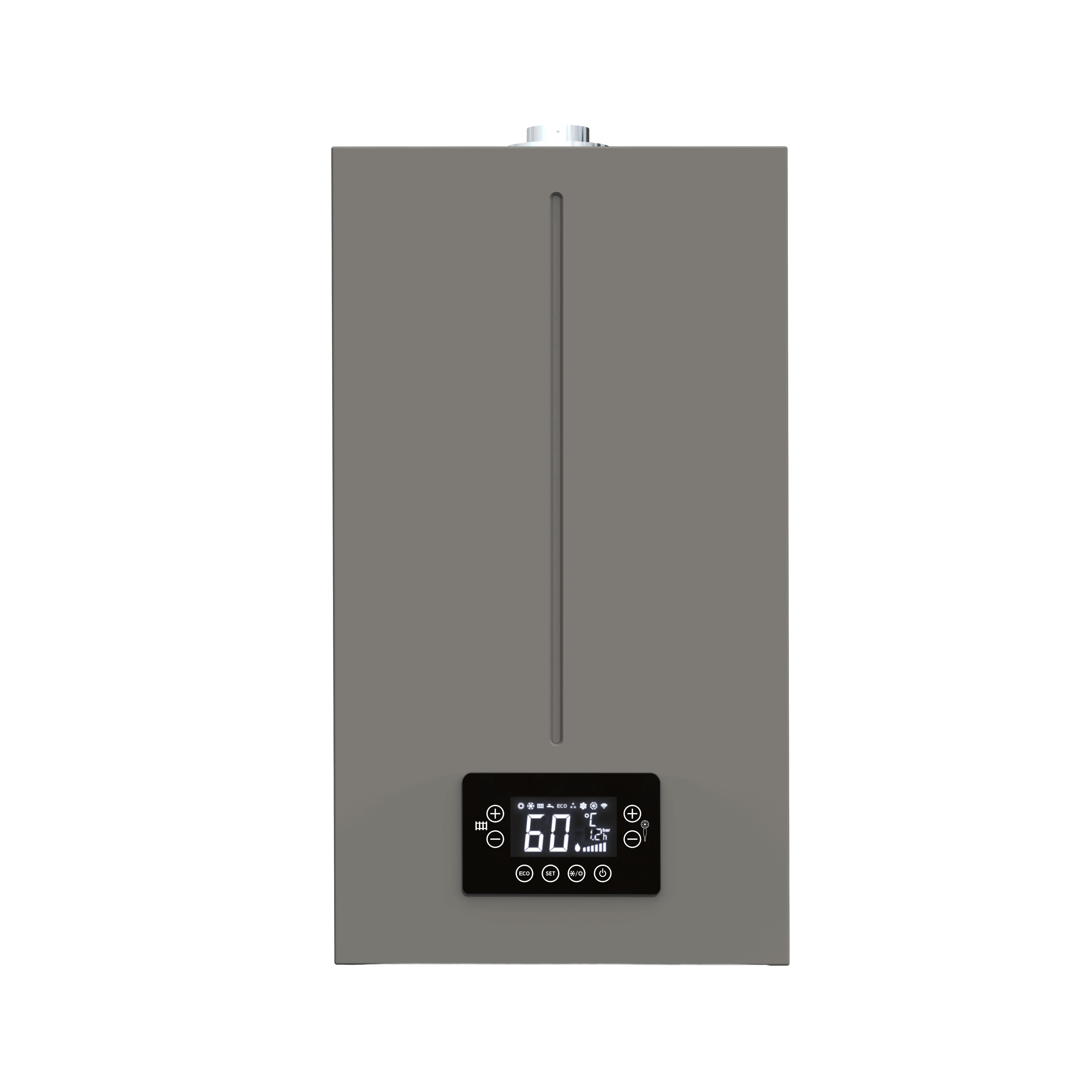

Super Plus High Power Wall Hung Gas Boiler for Villa
- Multiple Safety Protections
- Easy Operation
- Gas,Voltage and Water Pressure Adaptive
- Hot Water Comfort
- Energy Saving and Gas Saving
- Low Noise Design
- Drawer-type Air Filter
- Rainwater Collector
- Smart Internet of Things
Super Plus High Power Wall Hung Gas Boiler for Villa
Plate Heat Exchanger Type
Power Options: 32/36/40/45/50 kW
Technological Advantage
(1) Gas adaptive
300-3000pa gas pressure adaptive start
(2) Voltage adaptive
160v-280v voltage low or high fluctuation adaptive
(3) Water pressure adaptive
Automatically adjust the stable water outlet temperature according to the water flow
(4) Hot water comfort
The self-adjustment function of adaptive technology better solves the stability of shower hot water
(5) Energy saving and gas saving
A-level energy efficiency
(6) Low noise design
Built-in fluid mechanics silencer, silent operation, no sleep disturbance
(7) Drawer-type air filter
Extend the machine maintenance time and reduce maintenance costs
(8) Rainwater collector
Prevent rainwater backflow, burn core components, better protect the machine
(9) Smart Internet of Things
Mobile phone WIFI remote control, one-click view of gas consumption
Technical Data
Model | 32kw | 36kw | 40kw | 45kw | |
Rated max./min. heat load of CH | kw | 32/11.2 | 36/12.6 | 40/14 | 45/16.5 |
Rated max./min. heat output of CH | kw | 29.3/9.5 | 32.4/10.7 | 36/11.9 | 40.9/14.3 |
Rated heat load of DHW | kw | 32 | 36 | 40 | 45 |
Rated min. heat load of DHW | kw | 4.5 | 5 | 5.6 | 6.3 |
Rated min. heat output of DHW | kw | 3.9 | 4.2 | 4.7 | 5.3 |
Ignition power | kw | 19.2 | 21 | 21.6 | 24.5 |
Thermal Efficiency (At rated input power) | % | 92 | 92 | 92 | 92 |
Thermal Efficiency (At 30% input power) | % | 90 | 90 | 90 | 90 |
Max. water pressure of CH system | MPa | 0.3 | 0.3 | 0.3 | 0.3 |
Min./Max. CH Water Temperature | °C | 30/80 | 30/80 | 30/80 | 30/80 |
CH Water Temp. Adjustment Range (Radiator) | °C | 30-80 | 30-80 | 30-80 | 30-80 |
CH Water Temp. Adjustment Range (Floor Heating) | °C | 30-60 | 30-60 | 30-60 | 30-60 |
Max./Min. DHW Water pressure | MPa | 0.8/0.025 | 0.8/0.025 | 0.8/0.025 | 0.8/0.025 |
Min. flow of DHW | kg/min | 3 | 3 | 3 | 3 |
Rated Water Capacity (∆t=25℃) | kg/min | 16.8 | 18.6 | 20.6 | 23.2 |
Expansion Tank Volume | L | 8-10 | 8-10 | 8-10 | 8-10 |
Expansion Tank Pre-set Pressure | MPa | 0.1 | 0.1 | 0.1 | 0.1 |
Waterproof Protection Level | IP | X4D | X4D | X4D | X4D |
Voltage/Frequency | V/Hz | 220/50 | 220/50 | 220/50 | 220/50 |
Reference gas consumption (NG 12T) | m3/h | 1.2-3.43 | 1.33-3.81 | 1.58-4.28 | 1.72-4.65 |
Heating Area | ㎡ | 160-260 | 200-310 | 250-360 | 290-420 |
N.W/G.W | kg | 32/36 | 37.5/42.5 | 38.5/43.5 | 43.5/48.5 |
Product Dimension (LxWxH) | mm | 690X417X325 | 710X420X345 | 740X580X325 | |
Packing Dimension (LxWxH) | mm | 810X490X410 | 840X650X410 | ||
