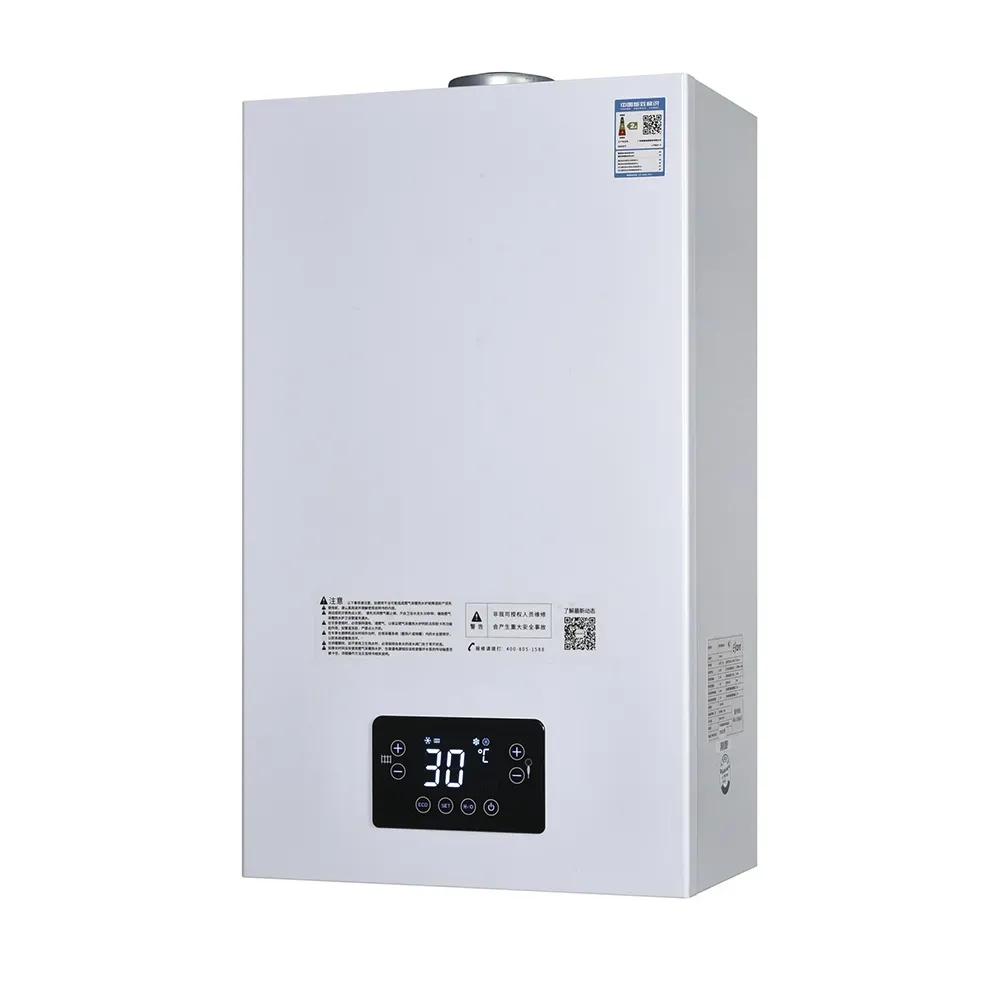

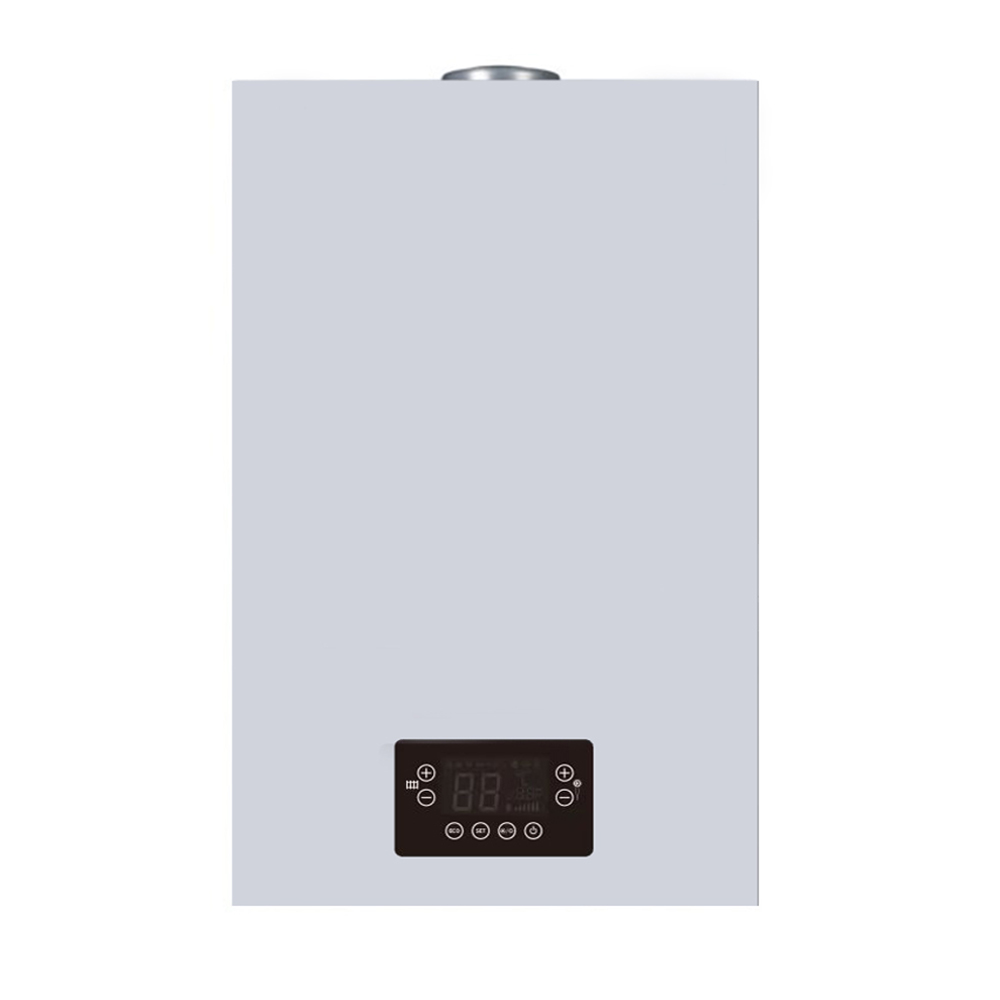

X Series Segmented Combustion Wall-Mounted Gas Boiler
- Segmented Combustion Technology
- Gas,Voltage and Water Pressure Adaptive
- Hot Water Comfort
- Energy Saving and Gas Saving
- Low Noise Design
- Drawer-type Air Filter
- Rainwater Collector
- Smart Internet of Things
XAVIER Segmented Combustion Wall-Mounted Gas Boiler
Plate Heat Exchanger Type
Power Options: 20/26/32 kW
Technological Advantage
(1) Gas adaptive
300-3000pa gas pressure adaptive start
(2) Voltage adaptive
160v-280v voltage low or high fluctuation adaptive
(3) Water pressure adaptive
Automatically adjust the stable water outlet temperature according to the water flow
(4) Hot water comfort
The self-adjustment function of adaptive technology better solves the stability of shower hot water
(5) Energy saving and gas saving
A-level energy efficiency
(6) Low noise design
Built-in fluid mechanics silencer, silent operation, no sleep disturbance
(7) Drawer-type air filter
Extend the boiler maintenance time and reduce maintenance costs
(8) Rainwater collector
Prevent rainwater backflow, burn core components, better protect the boiler
(9) Smart Internet of Things
Mobile phone WIFI remote control, one-click view of gas consumption
Technical Data
Model | 20kw | 26kw | 32kw | |
Rated heat load of heating | kw | 20.0 | 26.0 | 32.0 |
Rated output power | kw | 18.0 | 24.0 | 29.3 |
Min. heating output power | kw | 6.1 | 8.0 | 9.8 |
Min. sanitary water output | kw | 2.7 | 3.3 | 4.0 |
Thermal Efficiency (At rated input power) | % | 92 | 92 | 92 |
Heating Area | ㎡ | 70-120 | 100-160 | 160-260 |
Hot water production rate (∆t=30K) | kg/min | 8.3 | 11.0 | 13.5 |
Rated electrical power | W | 120 | 120 | 132 |
Voltage/Frequency | V/Hz | 220/50 | 220/50 | 220/50 |
NOx Level | Mg/kw·h | 4 | 4 | 4 |
Product Dimension (LxWxH) | mm | 690x417x243 | 690x417x243 | 740x510x352 |
